The CS-24P/H are specially engineered to excel in speech intelligibility and musicality, even in acoustically challenging spaces. The design is represents a breakthrough in pattern control consistency, utilizing complex analog delay beam-forming and amplitude tapering to accomplish superior, consistent vertical coverage without the narrow vertical beaming and out-of-coverage lobing that are typical of straight form-factor column array speakers.

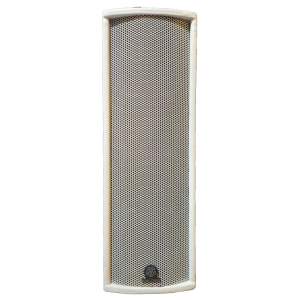

Front CS-24P

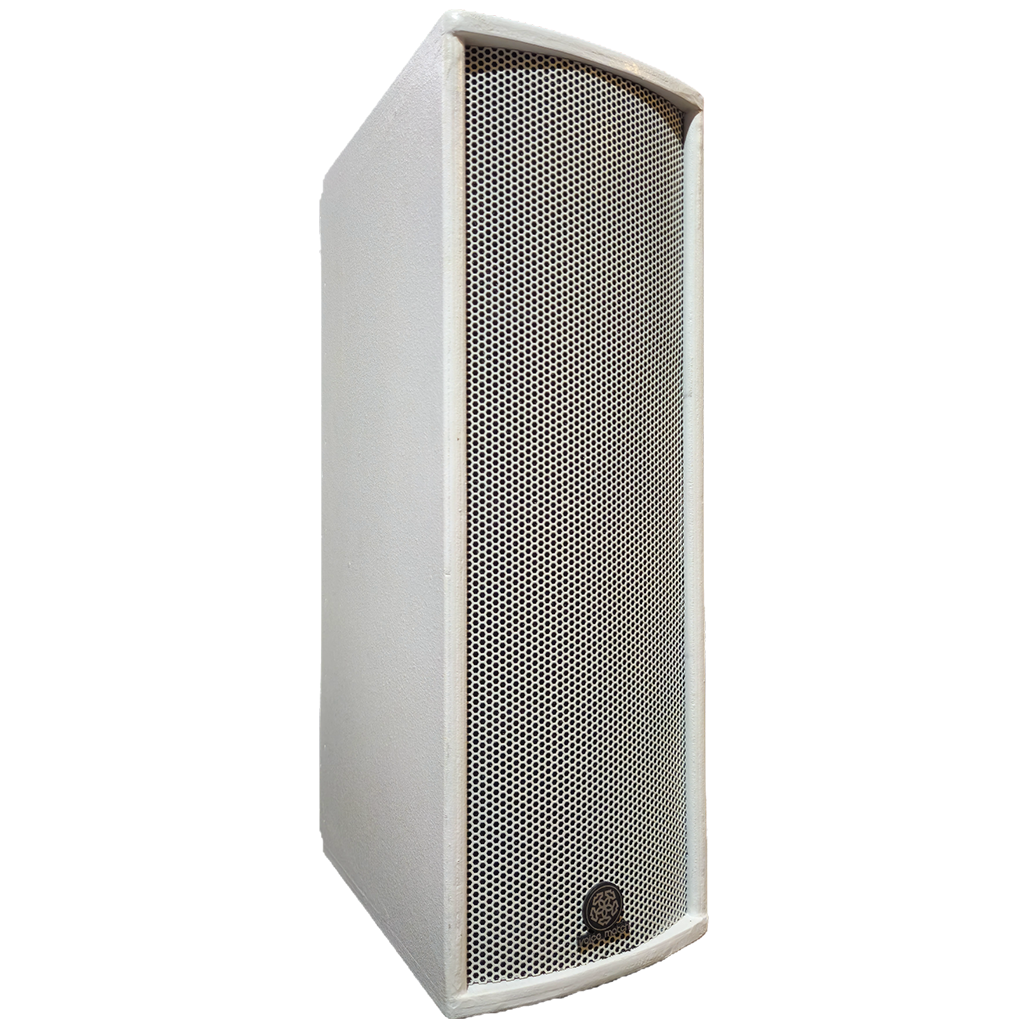

Side CS-24P

Specifications

Driver :  3 pcs Low-Mid range 4" Drivers - 1 pcs Mid range 4" Driver - 9 pcs HF 1" Drivers

Frequency Range :  65 - 20 kHz

Coverage Angle :  Horizontal 150 degree, Vertical 20 Degree

Sensitivity :  95 dB (1 W, 1 m)

Impedance :  16 Ohms

Power Rating :  300 W (600 W Program)

Dimensions :  160 (W) x 475 (H) x 262 (D) mm

Mounting :  Top and bottom Adjustable "L" wall bracket

Option :  Stand Adaptor, Floor Stand.

Color :  Black (H series) or white (P series)

GLL Download :  coming soon.
